SpeedaLite™ Singlemode MTP® Fiber Breakout

Name: SpeedaLite™ Singlemode MTP® Fiber Breakout
SKU: 25141
Availability: InStock

N/A

$115.87 – $136.99

Don't see what you need? Go to Configurator Tool

Jacket Rating OFNP (Plenum)

Fiber Type Corning® Fiber, OS2, Singlemode 9/125

Connector A US Conec MTP-12

Connector A Gender Female

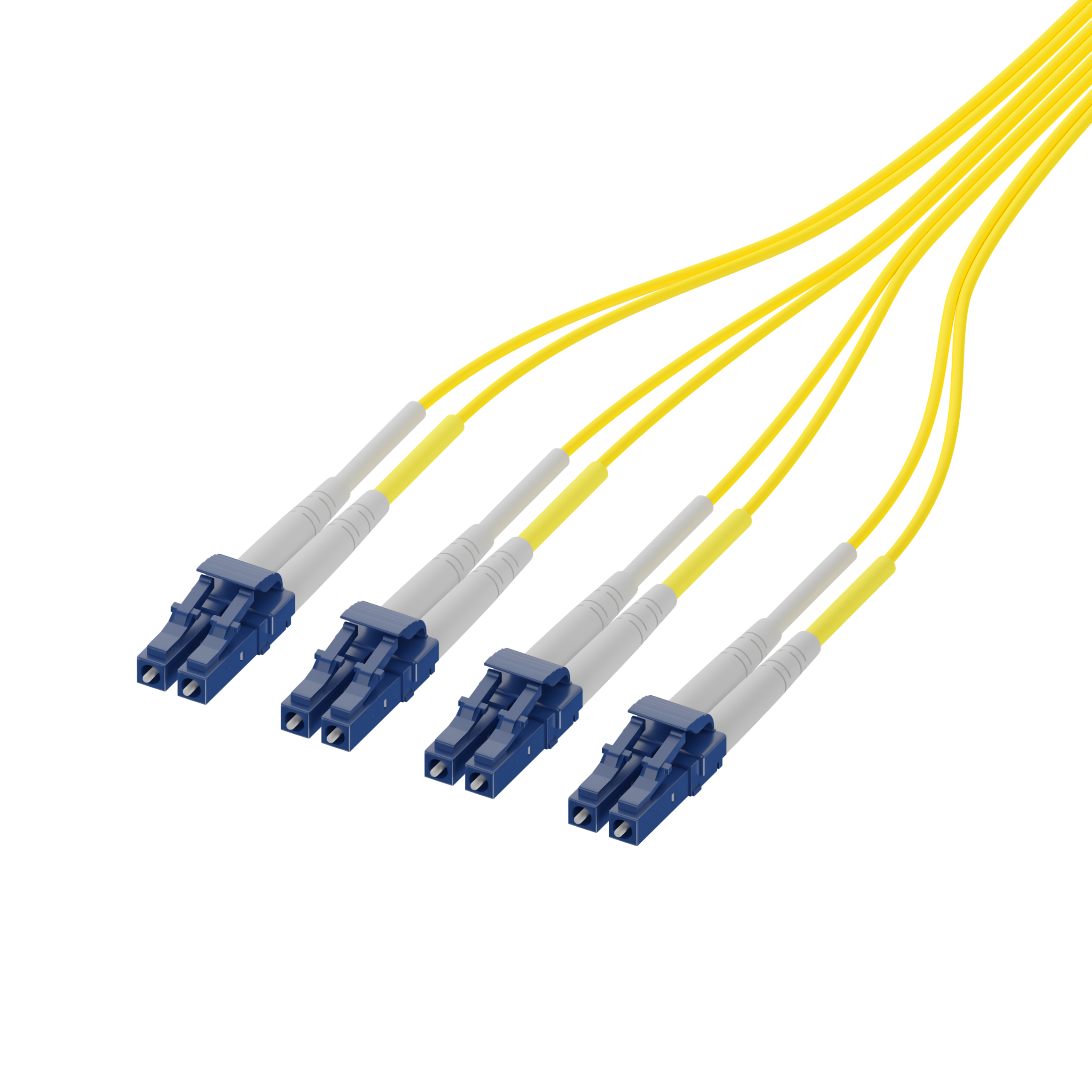

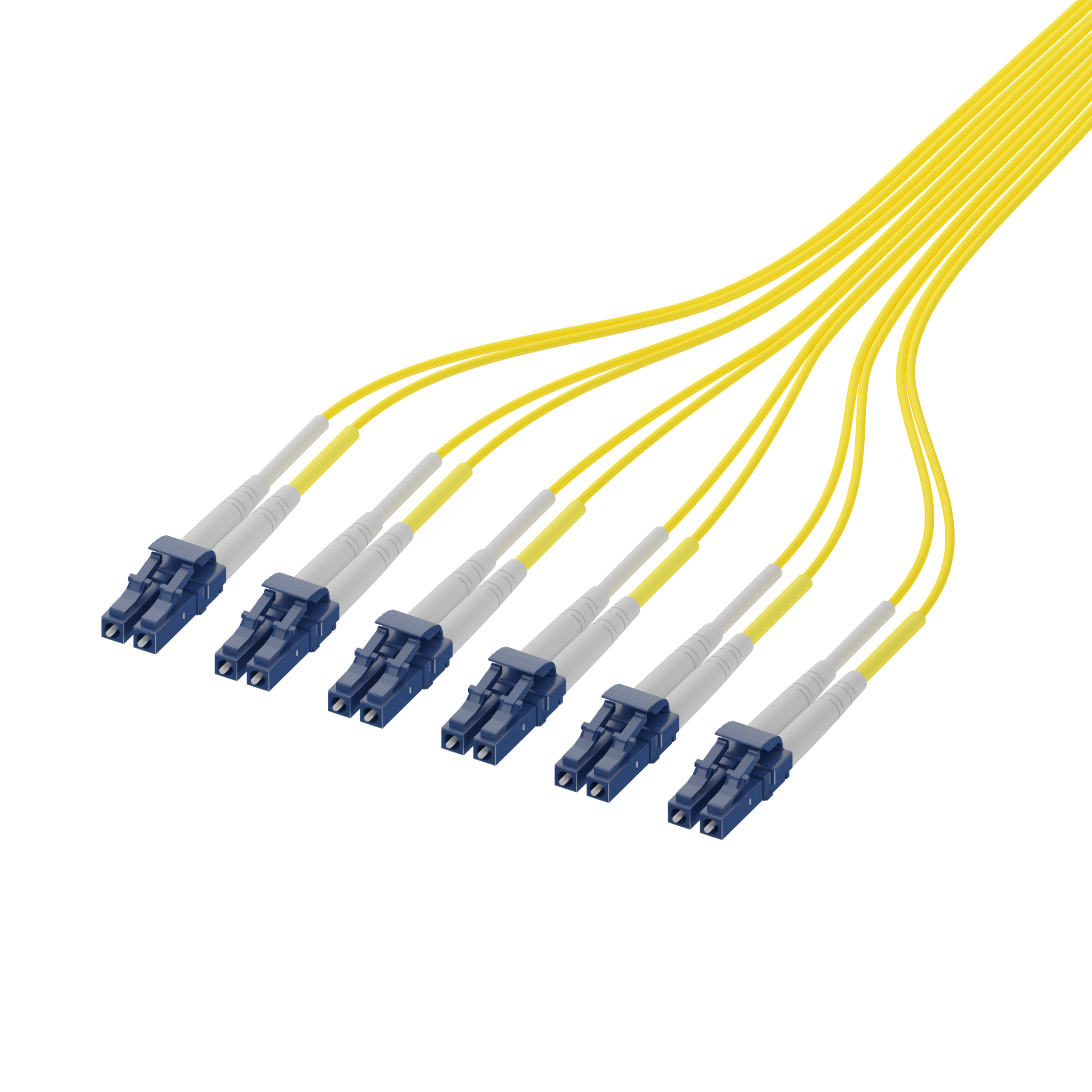

Connector B LC

Connector B Gender Male

Fiber Count 12 Strand (Duplex), 8 Strand (Duplex)

Polarity Type B

Jacket Type 3.0mm, Round

Temperature Rating -20°C to +60°C

Insertion Loss ≤0.35 dB

Return Loss ≥20 dB

Attenuation at 850nm <2.3dB/km

Attenuation at 1300nm <0.6dB/km

Min. Bend Radius (Fiber Core) 7.5mm

Min. Bend Radius (Fiber Cable) 60D/30D (Dynamic/Static)

Approvals GR-326, IEC 61300, ISO/IEC 11801 Verified, REACH, RoHS, TIA/EIA568-B Compliant

Overall Bend Insensitive, Compliant with IEC60793-1 & IEC 60794 standards, Fiber optic connectors meet IEC 61754 & YDT1272 standards

Warranty Lifetime

ECCN EAR99

HTS Code 8544.70.0000

Spec Sheet - 12 Strand MTP Breakout

261 kb

Spec Sheet - 8 Strand MTP Breakout

395 kb

Networking at the SpeedaLite™ OS2 Singlemode MTP Breakout Cables

Standard Benefits

– They are IEC-61754 and EIA/TIA 604-2 compliant for usage in high speed cabling networks.

– Your network will be lightning fast, without any lag time between devices.

– You’ll be able to transmit data signals over long distances easily.

Emotional Benefits

– A lifetime investment in your network.

– You’ll be able to enjoy the peace of mind that comes with knowing your cables won’t fail you when you need them most.

Bend Insensitive Corning® Fiber

Bend-insensitive official Corning® fiber adds a layer of glass around the core of the fiber which has a lower index of refraction. This layer is called “trench” and it reflects the weakly guided modes back into the core when stress normally causes them to be coupled into the cladding. This way BIF allows small bending radiuses without significant light loss, which makes working with fiber much easier.

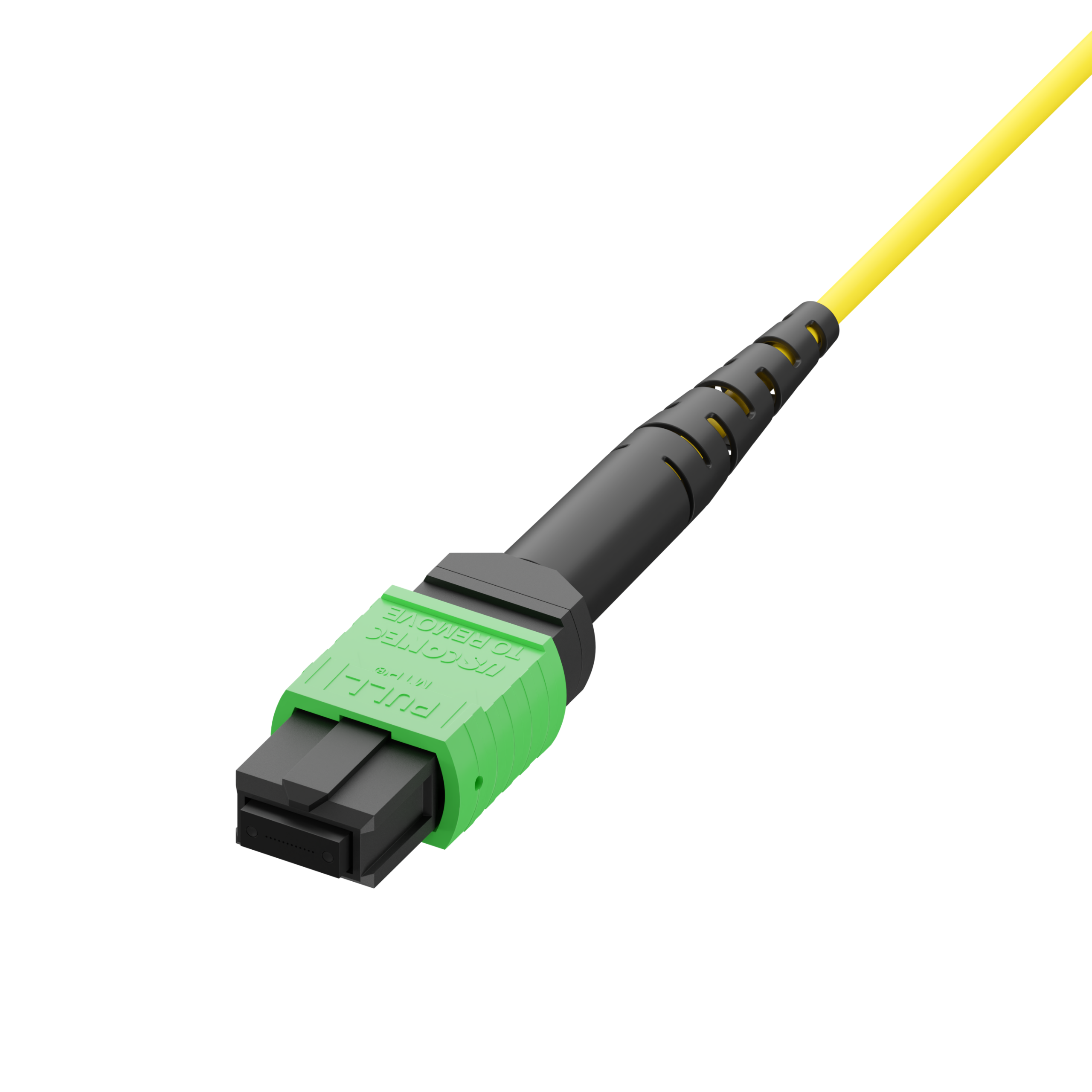

US Conec MTP®

The MTP® connector design offers novel patented features, enhanced precision, proven reliability, and significant performance improvements compared to the standard MPO connector format.

Flexible Jacket

This jacket is not only lightweight and flexible, but also UV resistant. The light-weight design makes it easy to install in various settings.

Why SpeedaLight™?

Every fiber optic cable we produce is fully tested and guaranteed with a lifetime warranty.

This includes:
- 3D Interferometer testing
- Insertion loss and Return loss testing
- Connector face inspection for imperfections

Precision Fiber Optic Manufacturing

We build it right the first time

We are proud of our ISO 9001-2001 manufacturing facilities that assure consistent quality. Not only do we use the best materials to build all of our cable products, but from polishing paper to epoxy - no detail is too small for us! That's how SpeedaLite™ fiber optic cables perform at their peak levels time after time.
