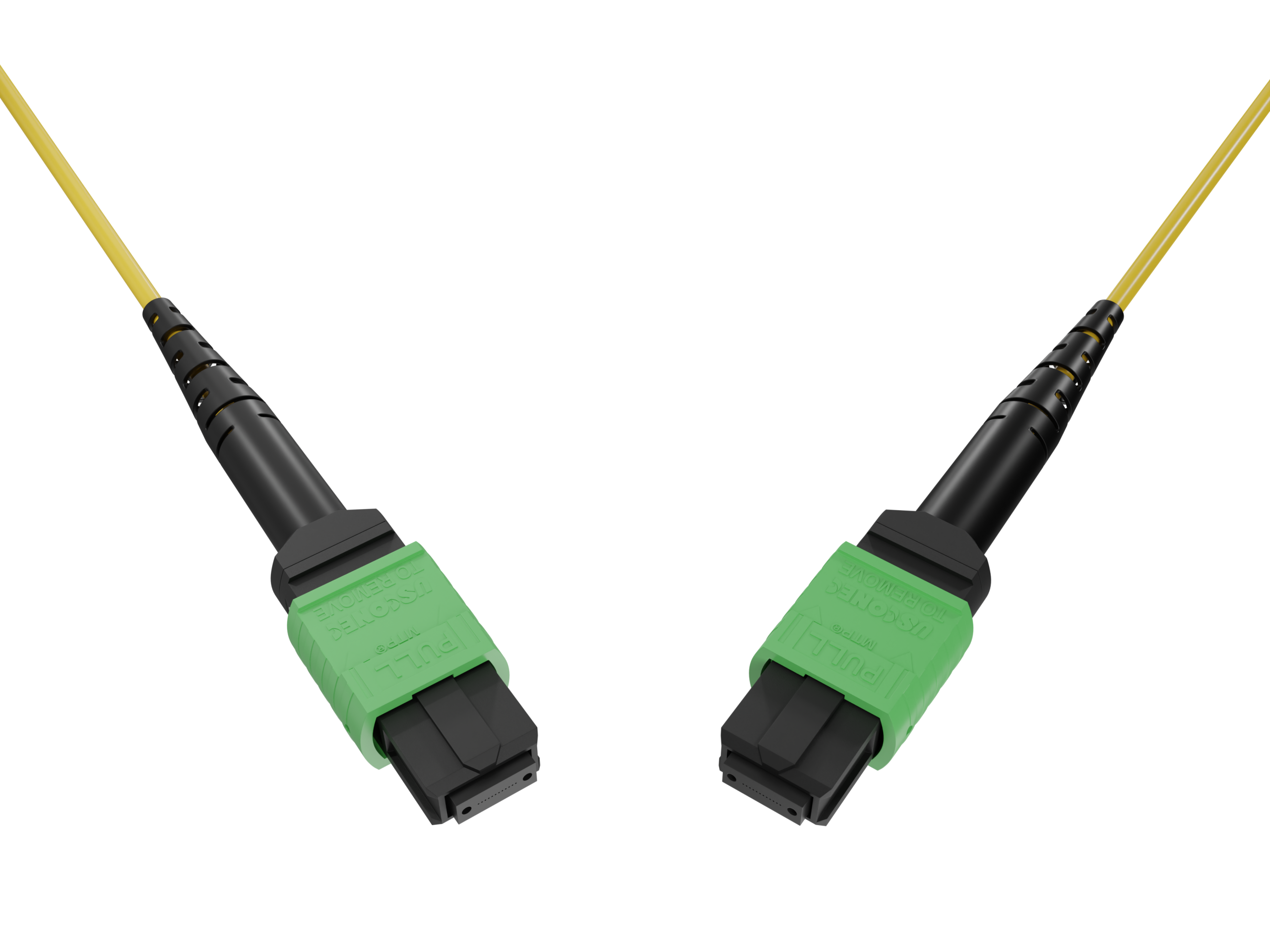

SpeedaLite™ Fiber Optic Cable Singlemode 9/125 OS2 MTP® Female – Female

N/A

$131.93 – $150.79

Clear
Need a better price ? Create a user account today!
Don't see what you need? Go to Configurator Tool
Love0

Jacket Rating OFNP (Plenum)

Fiber Type Corning® Fiber, Singlemode 9/125

Connector A US Conec MTP-12

Connector A Gender Female

Connector B US Conec MTP-12

Connector B Gender Female

Fiber Count 12 Strand

Polarity Type B

Jacket Type 3.0mm, Round

Temperature Rating -20°C to +60°C

Insertion Loss ≤0.35 dB

Return Loss ≥20 dB

Attenuation at 850nm <2.3dB/km

Attenuation at 1300nm <0.6dB/km

Min. Bend Radius (Fiber Core) 7.5mm

Min. Bend Radius (Fiber Cable) 60D/30D (Dynamic/Static)

Approvals GR-326, IEC 61300, ISO/IEC 11801 Verified, REACH, RoHS, TIA/EIA568-B Compliant

Overall Bend Insensitive, Compliant with IEC60793-1 & IEC 60794 standards, Fiber optic connectors meet IEC 61754 & YDT1272 standards

Warranty Lifetime

ECCN EAR99

HTS Code 8544.70.0000

Spec Sheet

241 kb

  • SpeedaLite™ Fiber Optic Cable Multimode 50/125 OM4 100Gig MTP® Female – Female

  • SpeedaLite™ Fiber Optic Cable Multimode 50/125 OM3 40Gig MTP® Female – Female

  • SpeedaLite™ Singlemode MTP® Fiber Breakout

  • OM4 MTP Breakout Fiber Cable

    SpeedaLite™ OM4 MTP® Fiber Breakout

Networking at the SpeedaLite™ OM3 Mulitmode Bend Insensitive Fiber Optic Cables

Standard Benefits

– SpeedaLite™ Singlemode MTP® fiber optic cables can save space in your data centers, enterprise networks, telecom room, server farms, cloud storage networks and other places where fiber patch cables are needed.

Emotional Benefits

– Ensure that your data is safe and secure when transferring large amounts of information like cloud storage networks where speed matters most.

Bend Insensitive Corning® Fiber

Bend-insensitive official Corning® fiber adds a layer of glass around the core of the fiber which has a lower index of refraction. This layer is called “trench” and it reflects the weakly guided modes back into the core when stress normally causes them to be coupled into the cladding. This way BIF allows small bending radiuses without significant light loss, which makes working with fiber much easier.

US Conec MTP®

The MTP® connector design offers novel patented features, enhanced precision, proven reliability, and significant performance improvements compared to the standard MPO connector format.

Flexible Jacket

This jacket is not only lightweight and flexible, but also UV resistant. The light-weight design makes it easy to install in various settings.

Why SpeedaLight™?

Every fiber optic cable we produce is fully tested and guaranteed with a lifetime warranty.

This includes:n- 3D Interferometer testingn- Insertion loss and Return loss testingn- Connector face inspection for imperfections

Precision Fiber Optic Manufacturing

We build it right the first time

We are proud of our ISO 9001-2001 manufacturing facilities that assure consistent quality. Not only do we use the best materials to build all of our cable products, but from polishing paper to epoxy - no detail is too small for us! That's how SpeedaLite™ fiber optic cables perform at their peak levels time after time.
