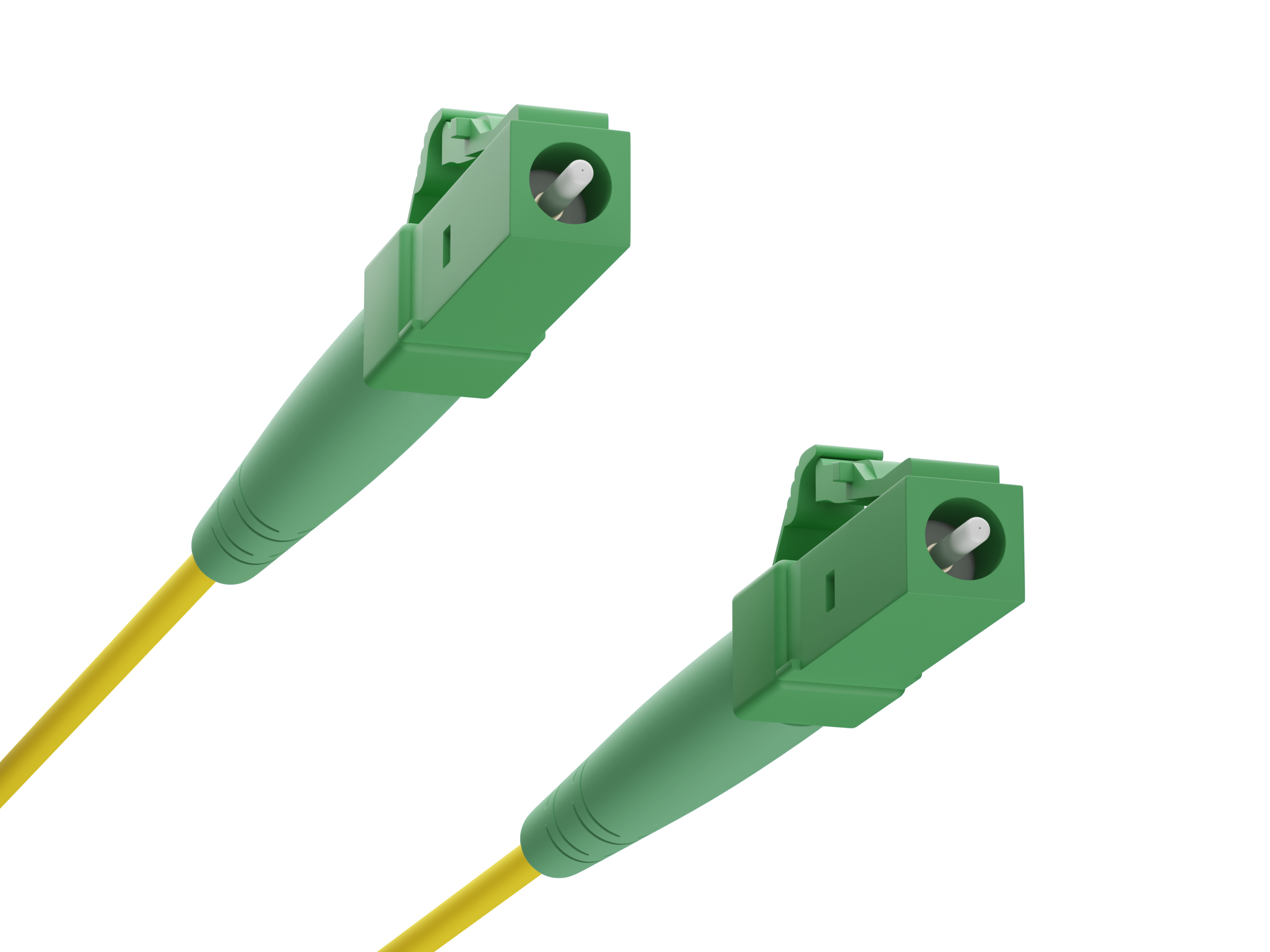

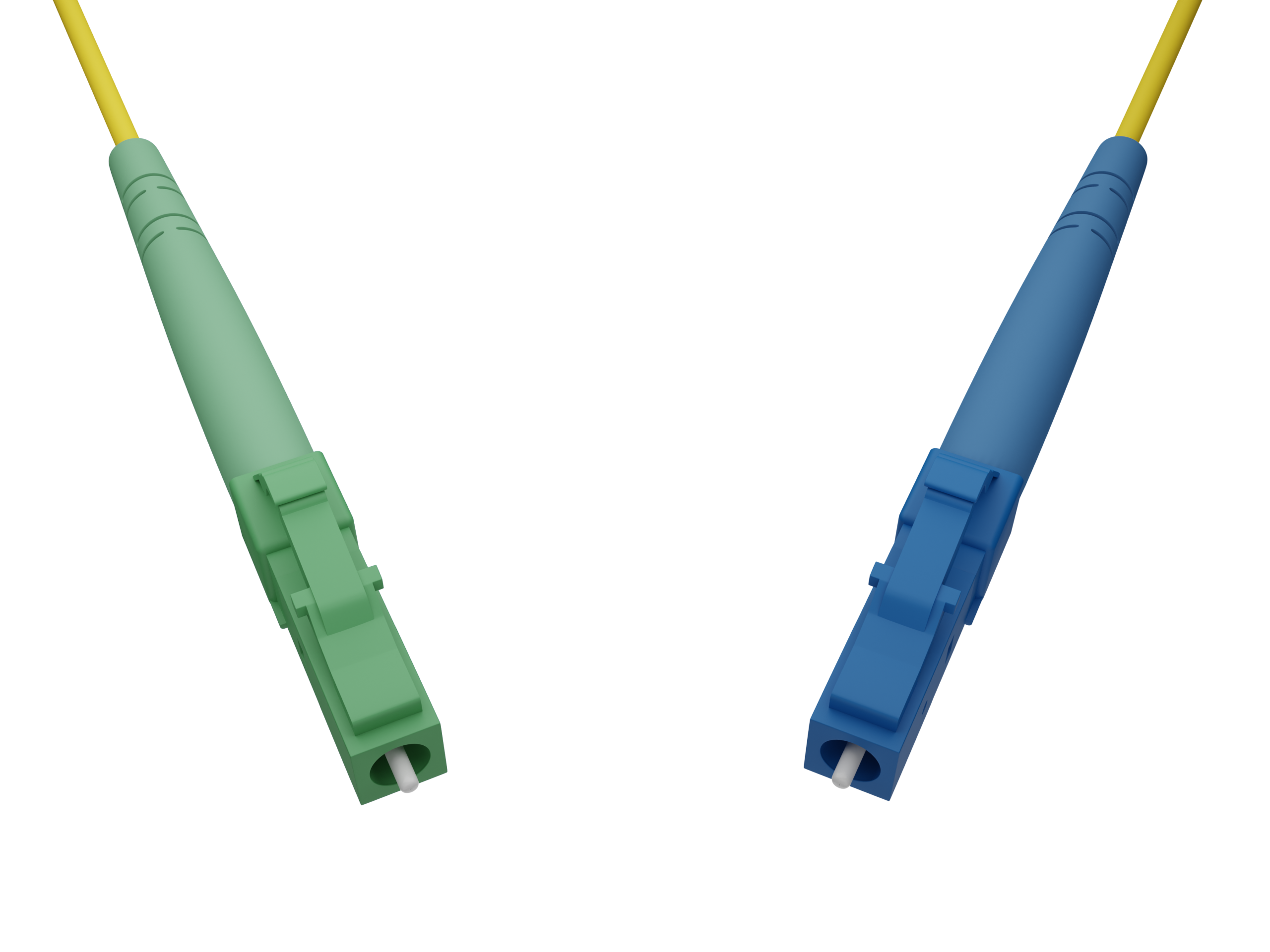

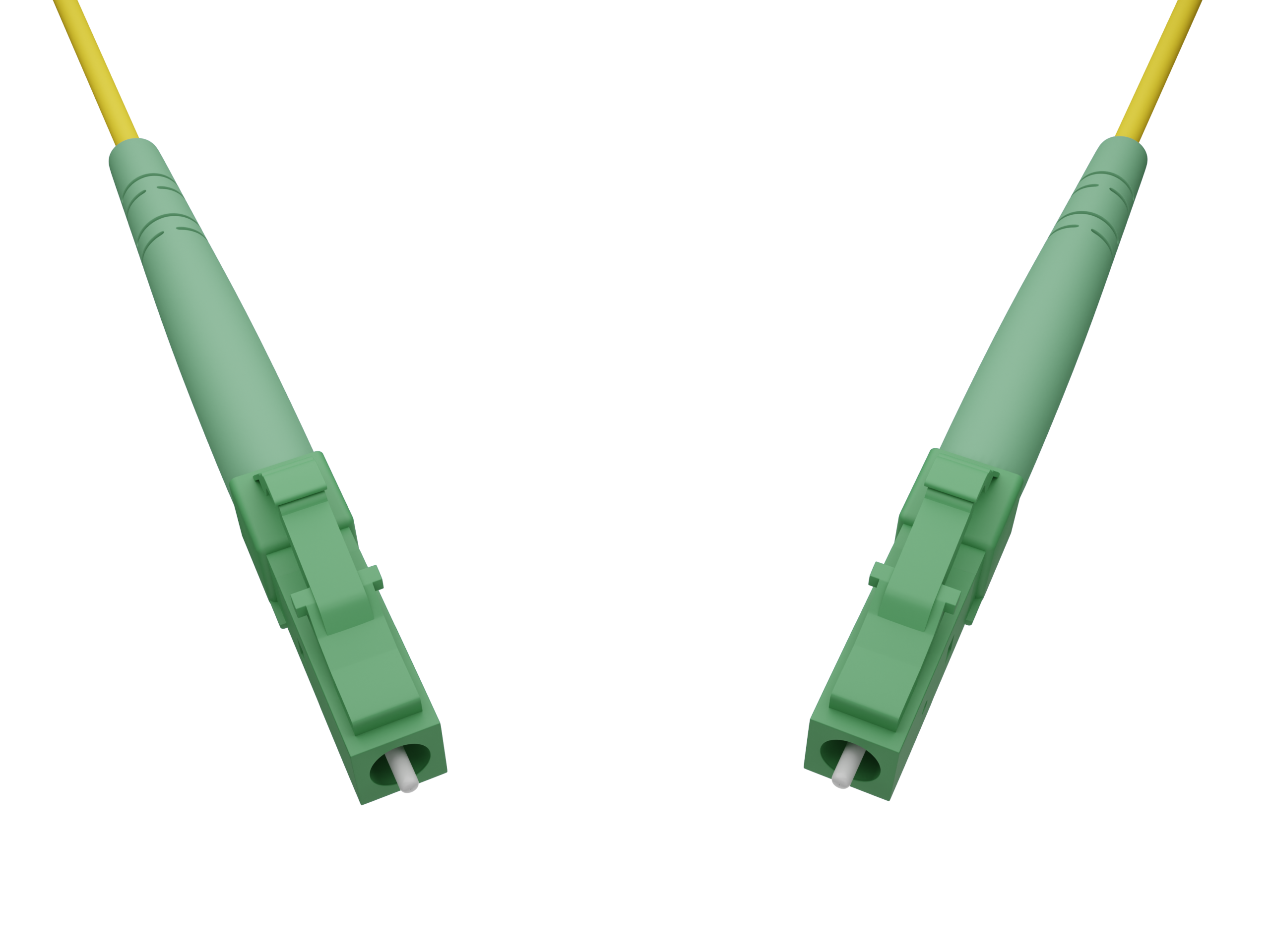

SpeedaLite™ Fiber Optic Cable Singlemode 9/125 SX LC-LC

N/A

This product is currently out of stock and unavailable.

Don't see what you need? Go to Configurator Tool
Love0

Jacket Rating OFNR (Riser)

Fiber Type 2.0mm, Bend Insensitive, OS2, Singlemode 9/125

Connector A LC

Conn A Finish APC, UPC

Connector B LC

Conn B Finish APC, UPC

Fiber Count 1 (Simplex)

Overall G.657.A1 (Compatible with G.652.D), Wavelength 1310/1550nm

Temperature Rating -20°C to +60°C

Insertion Loss ≤0.20 dB

Return Loss ≥55dB

Attenuation at 1310nm <0.4dB/km

Attenuation at 1550 nm <0.3dB/km

Minimum Fiber Core Bend Radius 10mm

Minimum Fiber Cable Bend Radius 50D/30D (Dynamic/Static)

Data Size 10Gb to 80km

ECCN EAR99

HTS Code 8544.70.0000

Approvals Compliant to IEC-61754 and TIA-604 (FOCIS), GR-326, IEC 61300, ISO/IEC 11801, UL, Verified EIA/TIA-455-171A, RoHS, REACH, TIA/EIA568-B Compliant

Warranty Lifetime

Technical Drawing

176 kb
  • image of a ST-ST singlemode fiber optic cable

    SpeedaLite™ Fiber Optic Cable Singlemode 9/125 DX SC-ST

  • Image of a coiled Singlemode LC to ST yellow fiber optic cable

    SpeedaLite™ Fiber Optic Cable Singlemode 9/125 DX LC-ST

  • SpeedaLite™ Fiber Optic Cable Singlemode 9/125 SX SC-SC

  • SpeedaLite™ Fiber Optic Cable Singlemode 9/125 SX LC-LC

Networking at the SpeedaLite™ Single mode OS2 Bend Insensitive Fiber Optic Cables

n

Standard Benefits

n

– They are IEC-61754 and EIA/TIA 604-2 compliant for usage in high speed cabling networks.nn– Your network will be lightning fast, without any lag time between devices.nn– You’ll be able to transmit data signals over long distances easily.

n

Emotional Benefits

n

– A lifetime investment in your network.nn– You’ll be able to enjoy the peace of mind that comes with knowing your cables won’t fail you when you need them most.

n

G.657.A1 Bend Insensitive Fiber

n

Bend-insensitive fiber adds a layer of glass around the core of the fiber which has a lower index of refraction. This layer is called “trench” and it reflects the weakly guided modes back into the core when stress normally causes them to be coupled into the cladding. This way BIF allows small bending radiuses without significant light loss, which makes working with fiber much easier.

n

Zirconia Ceramic Ferrules

n

Ferrules and sleeves are the key components of connectors, which ensure perfect alignment of the fiber after connection to prevent signal loss.

n

Flexible Jacket

n

Designed specifically to make installation a breeze!

Why SpeedaLight™?

Every fiber optic cable we produce is fully tested and guaranteed with a lifetime warranty.

This includes:n- 3D Interferometer testingn- Insertion loss and Return loss testingn- Connector face inspection for imperfections

Precision Fiber Optic Manufacturing

We build it right the first time

We are proud of our ISO 9001-2001 manufacturing facilities that assure consistent quality. Not only do we use the best materials to build all of our cable products, but from polishing paper to epoxy - no detail is too small for us! That's how SpeedaLite™ fiber optic cables perform at their peak levels time after time.
